Ladder Cable Trays: They are made up of two side
rails which are joined together with rungs and repeating with equal
intervals; providing sturdy body support. They have open design
which ensures good airflow and this prevents the overheating of
cables used in high-power applications. These trays are good in high
duty applications like in power plant and chemical where strength
and durability is important.
-

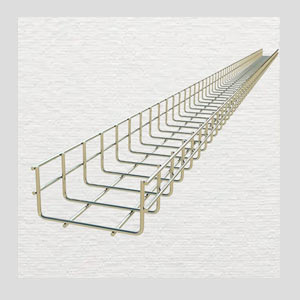

Wire Mesh Cable Trays: The various wire mesh cable
trays are also referred to as basket trays, and they are made using
stainless steel, wires welded into a grid structure. They are also
non-corrosive, easy to install and they offer the best ventilation
thus they can be used in IT data centers and in corrosive
environments. Such cables are flexible and can be bent and
re-planned cable directions.
-
Solid Bottom Cable Trays: Solid bottom cable trays
have all the bottom closed and it offers the greatest protection
against dust, moisture and physical damages. To make them more
lasting, and less liable to corrosion, they may be powder-coated, or
better still galvanized. These trays are suited where wiring used is
delicate in areas such as data centers or telecommunication centers
when cable protection is of the essence.
-
Perforated Cable Trays: Perforated cable trays are
made out of stainless steel sheets having holes connected equally
apart; these trays offer a compromise between ventilation and cable
protection. The holes facilitate in heat removal and blockage of
water. They are very strong and resistant to corrosion and
proprietors take them across the board in commercial, industrial,
and process industries.
-
Channel Cable Trays: The channel or trough-type
cable trays have a profile of U-shape to give compact support of
cables. Their common applications include light to medium cable
loads in places where cable security and organization is of
importance. They are fabricated with quality stainless steel and
other materials, and can be fabricated to suit certain
specifications on a project level.
-
Single Rail Cable Trays: Single rail cable trays
are designed to be aesthetically installed and save spaces they
offer minimal support. They are ideal in an environment of minimal
space or where there is some form of design versatility. The trays
are weatherproof, easy to install and usually employed in commercial
buildings as well as in light industry settings.
Specifications of Stainless Steel Cable Tray
| Specification |
Details |
| Material |
Stainless Steel (SS 304, SS 316, SS 316L) |
| Tray Types |
Ladder Type Cable Trays, Perforated, Wire Mesh, SS Cable
Tray with Cover |
| Thickness |
1.2mm to 3mm |
| Standard Length |
2500mm to 3000mm |
| Width |
50mm to 1000mm (depending on type) |
| Height |
25mm to 150mm (depending on type) |
| Finish |
Polished, Brushed, or as required |
| Application |
Cable management in industrial, commercial, and
infrastructure projects |
Features of Stainless Steel Cable Tray
Our SS Cable Tray Suppliers in Pune are engineered to deliver superior
performance and reliability. Key features include:
-
Corrosion Resistant: Corrosion Resistant: Our trays
will be constructed by using high grade stainless steels (SS 304, SS
316, SS 316L ) and they are non-corrosive and non-rustic and hence
this can withstand long in harsh environments like in marine areas
or chemical plants.
-
Large Capacity to bear Weight: Capable of
withstanding the weight of large-sized cable bundles and it can
support them in a long distance without sagging, and can be used in
large-scale industries.
-
Ventilation: Our trays are very well ventilated,
and when properly designed, they ensure cable overheating which is
the major cause of failure to systems, especially in data centers.
-
Durability: constructed of stainless steel that has
high resistance to endure mechanical strain and environmental
pressures to guarantee durability in performance.
-
Aesthetic Appeal: Metal cable trays have a smooth
and contemporary image and, thus, can be used in visible
applications in commercial and public places.
-
Easy to install: light weights and modular
structures make installation easy, less labour cost and time.
Applications of Stainless Steel Cable Tray
Being a SS Cable Tray Wholesalers in Pune, we are versatile and widely used
across various industries due to their robust design and adaptability:
-
Industrial Facilities: Industrial Facility is a necessity in terms of managing the power and control cables of manufacturing apparatus, warehouses, and refineries, where the toughness and load surge capacity will be decisive. Industrial Cable Trays is a trustworthy performance in such an environment.
-
Commercial Buildings: Lead to the installations of neat electrical wiring in business offices, shopping parks, and stores, making them more secure and beautiful.
-
Data Centers: Support communication and power cables, where ventilation is crucial to prevent overheating of sensitive equipment.
-
Infrastructure Projects: Large scale cable management has been used in airports, railway stations and in stadiums where there is efficient distribution and supply of power.
-
Marine and offshore: They are also the best type to use in an environment that has contact with saltwater and emissions or stations exposed to a corrosive environment as they contain corrosion-resistant-material-property.
-
Food Industry: In places where hygiene should be the ultimate concern, the SS Cable Trays keep the surroundings clean and hygienic, as per industry standards.
Shree Cable Tray, a trusted SS Cable Tray manufacturers in Pune, delivers a top quality product at each step in our manufacturing process, and is closely calculated by high qualified quality analysts in terms of quality and longevity. Executed with the most precision, our stainless steel cable trays are designed to work in rigorous and strenuous conditions with resistance and durability. Whether it is ladder type cable tract systems or customized metal tray systems, we deliver quality with effectiveness to different industrial needs.
As top SS Cable Tray Suppliers in Pune and SS Cable Tray Wholesalers in Pune we have competitive prices and vast distribution service which delivers in time the right choice of place within Pune and other regions. The quality of our produce, service, and customer satisfaction is one of the major reasons that we are the most preferred stainless steel cable management supplier. Whether you need stainless steel cable trays to perform, contact us today to get the highest grade of stainless steel cable trays!
